SC UPC SM SX Duplex Fiber Optic Accessories Optical Fiber Coupler With Flange
Fiber Optic Accessories SC UPC SM SX Duplex fiber optical adapter joint coupler with flange
Overview

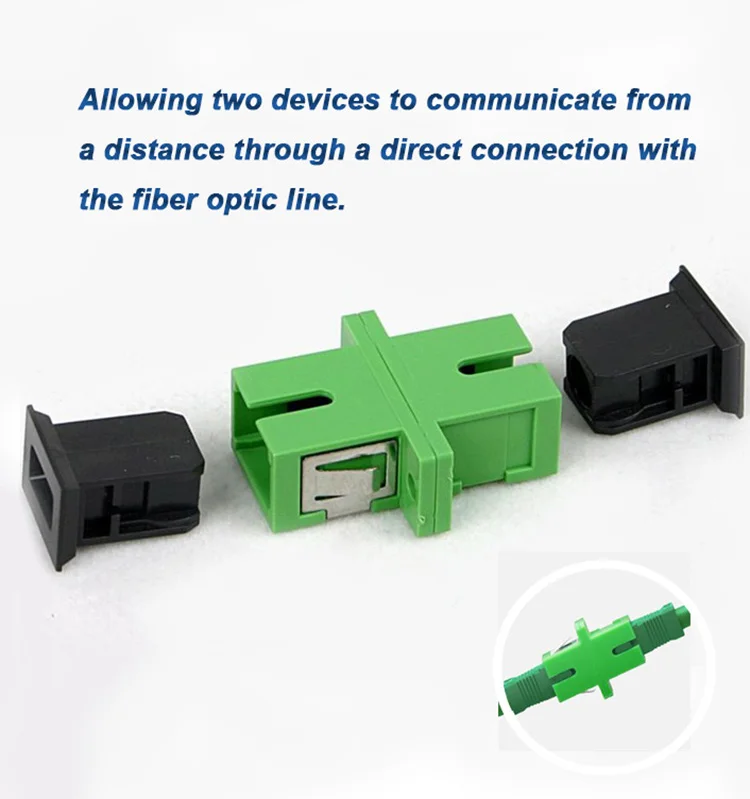

The SC adapter are the most used set for modern day optical fiber systems. With
theaudible click locking mechanism and pull proof design this connector provides a
secure interconnect.
Features
High return loss, Low insertion loss
Push-and-pull
structure, convenient for operation;

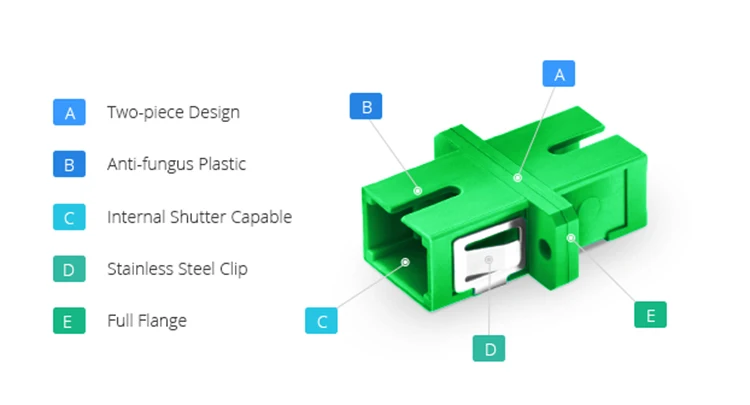

Split zirconia (ceramic) ferrule is adopted.
Used to mate two connectors together.
Usually mounted in a distribution panel or wall box.
EFON’s SC adapter is available for all standard connector types in both
single mode and multimode.
The adapters are color coded allowing easy identification of the adapter type.
Available with single-core &multi-core patch cords and pigtails.
Application
Local Area Network
CATV System
Telecommunication Networks
Equipment Test
Product Specification
| Parameter | Unit | LC, SC, FC, ST |
| SM | MM |
| PC | UPC | APC | PC |
| Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Exchangeability | dB | ≤0.2 |
| Repeatability | dB | ≤0.2 |
| Durability | Time | >1000 |
| Operating Temperature | °C | -40~75 |
| Storage Temperature | °C | -45~85 |
FAQ
Q1: What are the advantages of your price?
A1: We have our own factory, professioanl machinery equipment . We can meet the
price advantage of products with the same quality parameters, and we promise to
achieve a price of 1%-10% lower than that of our peers.
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting
"Enough Cores, Enough Meters, High Quality, High Performance". Providing
our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts
to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and
support long-term cooperative customers to upgrade to global agents and enjoy more
discounted prices.
